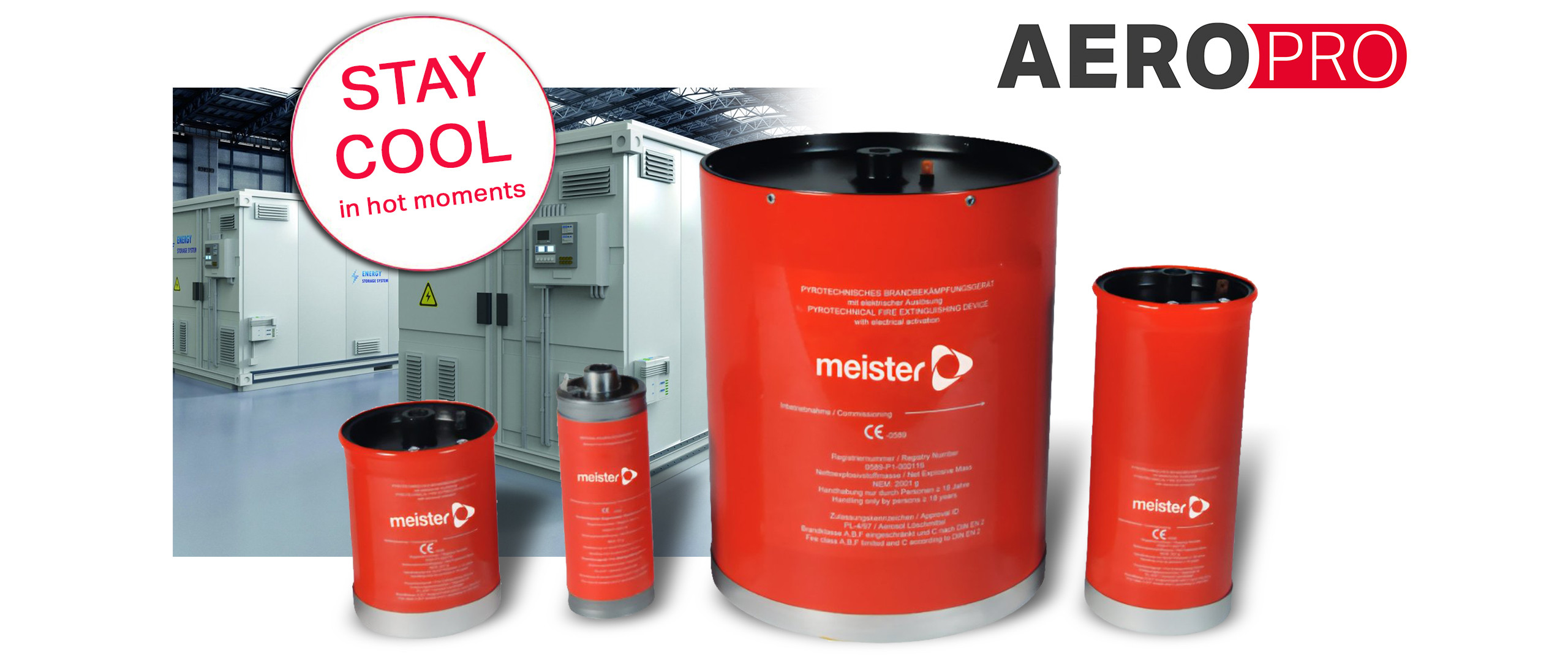

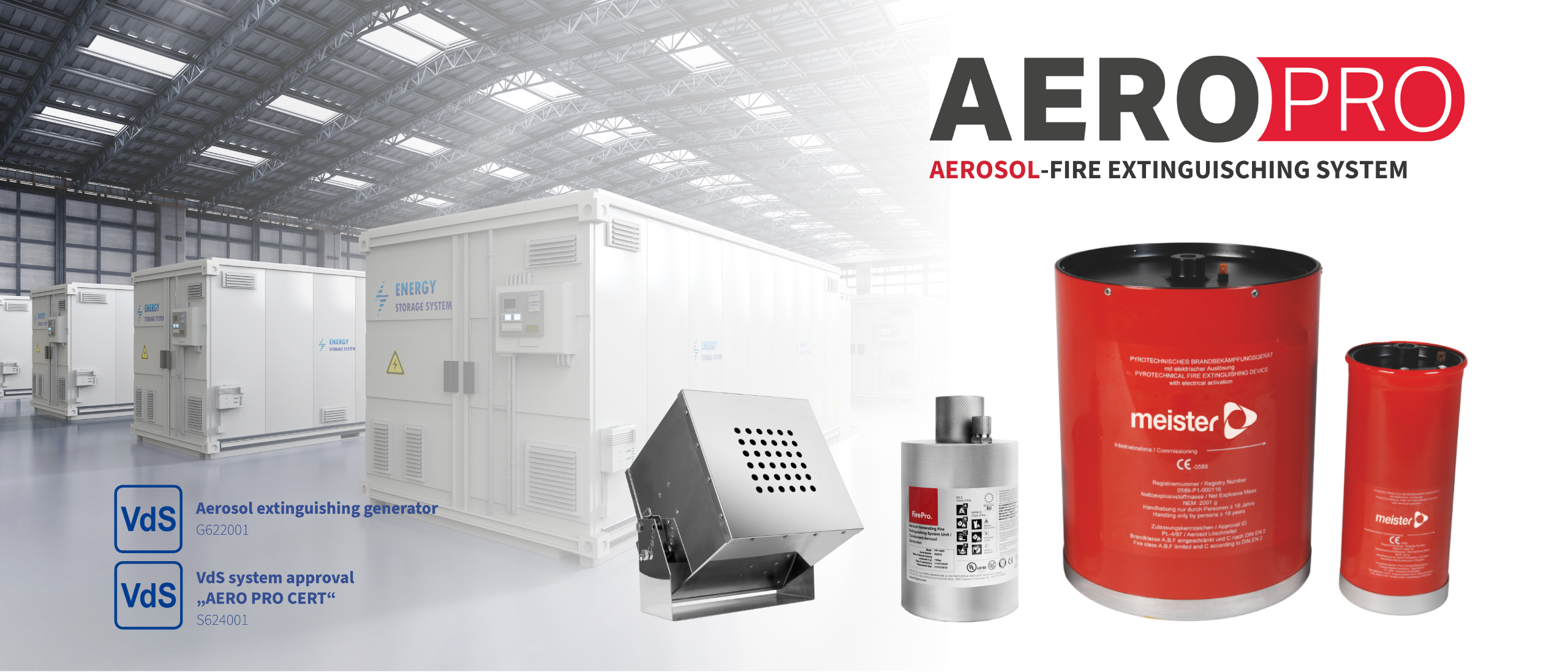

The AeroPro is an innovative and compact aerosol fire extinguishing system from Dynamit Nobel Defence GmbH. It can be combined with one of our fire extinguishing control centres to form an innovative aerosol fire extinguishing system.
The AeroPro was developed for fast and effective use on Class A, B, C, and F fires.
With little effort, the AeroPro provides fire protection for your enclosed facilities such as battery energy storage systems (BESS), energy storage systems (ESS), storage lifts, machine tools, wind turbines, hazardous substance cabinets, and transformer stations and integrates seamlessly with your fire alarm systems.
It uses an advanced pyrotechnical triggering system to release an extremely fine aerosol extinguishing agent mist. This extinguishing mist removes oxidising agents and heat from the fire, and extinguishing fires reliably without deoxygenation.
Connection to any commercially available fire alarm system is guaranteed by compliance with DIN EN 54 so that our aerosol extinguishing system can be integrated into your existing infrastructure.
The AeroPro Cert from Wetrax GmbH even offers VdS system approval and is recognised by your property insurer.

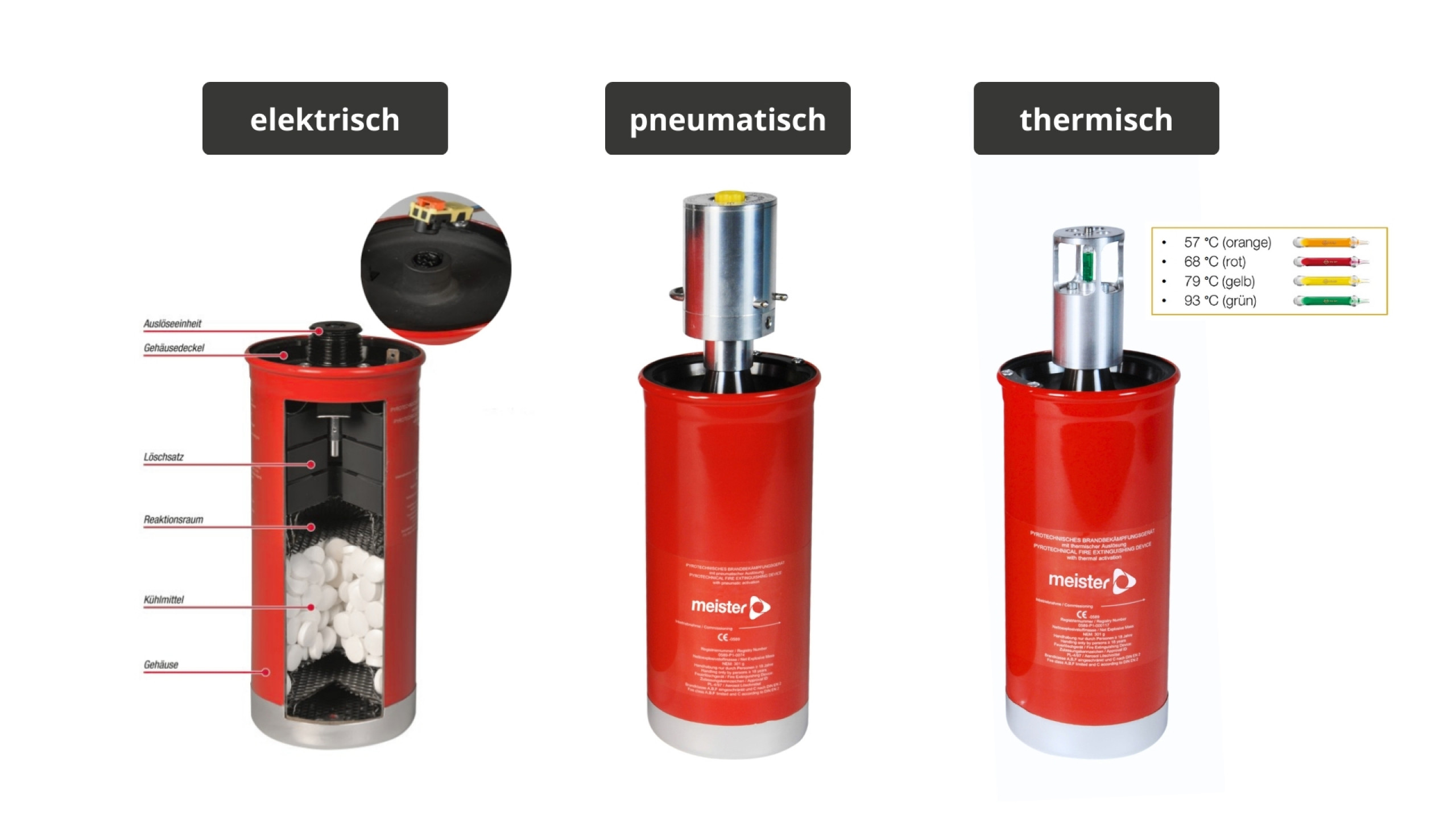

Our highly effective aerosol extinguishing systems can be installed in various industrial plants. Thanks to different trigger mechanisms, the extinguishing systems are flexible and can also be used independently of energy (e.g. in sea freight containers).
thermal – using a thermodynamic thermoglass bulb
pneumatic – with a pressurised cylinder for use in ATEX areas
electrical – via signals transmitted from heat or smoke detectors
In the event of a fire, AeroPro has a dual effect: it interrupts the chemical chain reaction in the fire and simultaneously cools the substances at a molecular level.
AeroPro uses an advanced pyrotechnical trigger to release an extremely fine aerosol extinguishing agent mist. This extinguishing mist works in a different way than extinguishing foam, powder, or water.
It removes oxidising agents and heat from the fire. It is non-conductive so that fires in electrical systems/components can also be successfully extinguished without any further risk of short circuits.
Secondary damage, such as that caused by extinguishing with water, foam, or powder, is prevented by AeroPro.
The extinguishing mist is so fine that the residue can easily be removed after extinguishing.
The cascaded use of several generators means that larger volumes can also be protected.
| Size | Protection volume for Class A* fire (VdS guideline 2381) |
Generator size Ø / length (mm) |
Weight (kg) | Duration of aerosol generation |
|---|---|---|---|---|
| 50 | 0.5 m³ = 500 litres | Ø46 x 137mm | 0.38 kg | 4 s |
| 200 | 2 m³ = 2,000 litres | Ø88 x 118mm | 0.9 kg | 5 s |
| 300 | 3 m³ = 3,000 litres | Ø88 x 198mm | 1.3 kg | 7 s |
| 2000 | 20 m³ = 20,000 litres | Ø202 x 255mm | 7.5 kg | 12 s |
Are you interested in our fire protection products or would you like to have a customised comprehensive solution for your company?
Please get in touch by phone or email!
We look forward to your enquiry!
